PozStar P5
High performance GPS (GNSS) receiver
- Designed and manufactured in South Korea
- Premium finishing materials
- High-quality components for unlimited service life
- Super fast FIX start-up
- Visual stakeout via controller camera, with Augmented Reality (AR)

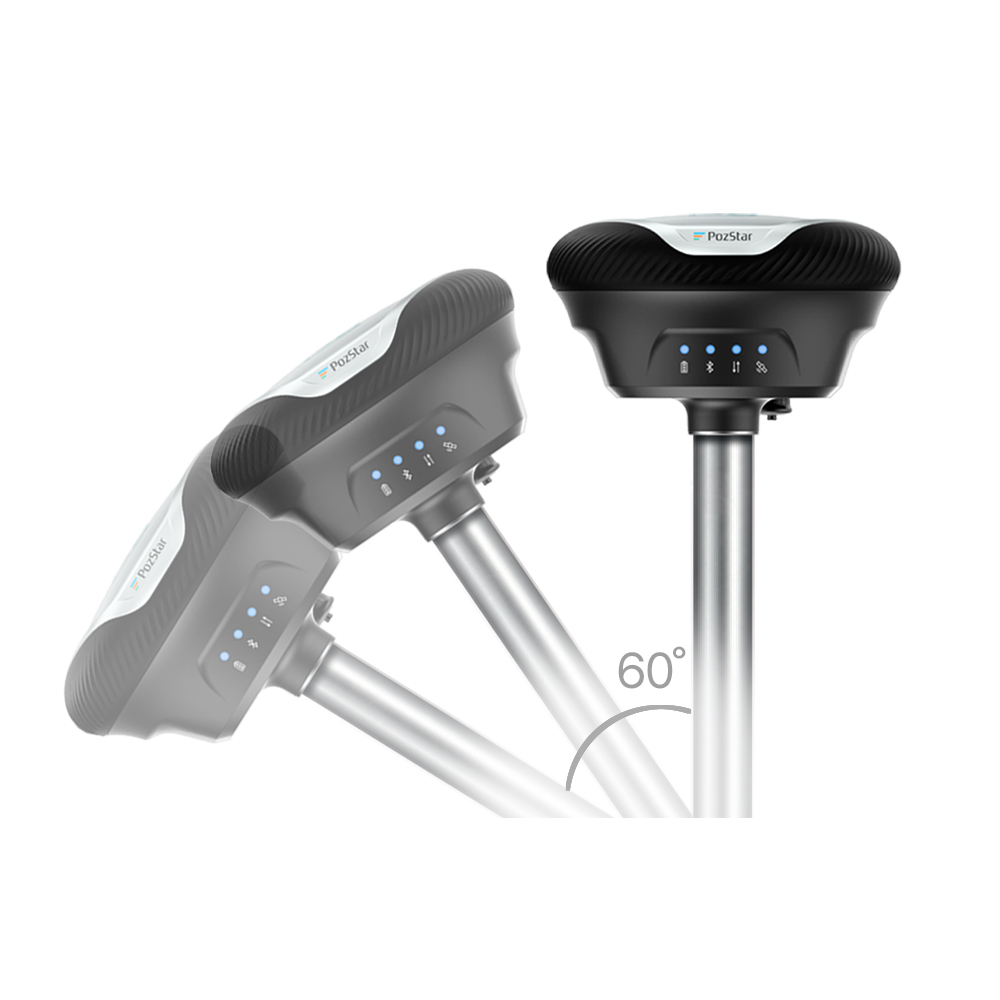

- IMU up to 60° tilt, no calibration necessary
- Lightweight (825g)
- 7 constellations and 1,408 channels
- RTK and PPK
- Robust FIX connection in challenging environments (under trees, urban environments, near tall buildings)
- Radio up to 15 Km (compatible with major brands), Wifi and Bluetooth
- PozPad professional field application included (For installation on smartphone / Android controller)
- Samsung 6700 mAh battery (up to 12 hours battery life, in Rover mode)
- Powerful 1W speaker
- IP67 protection (withstands drops of up to 2 m in height)

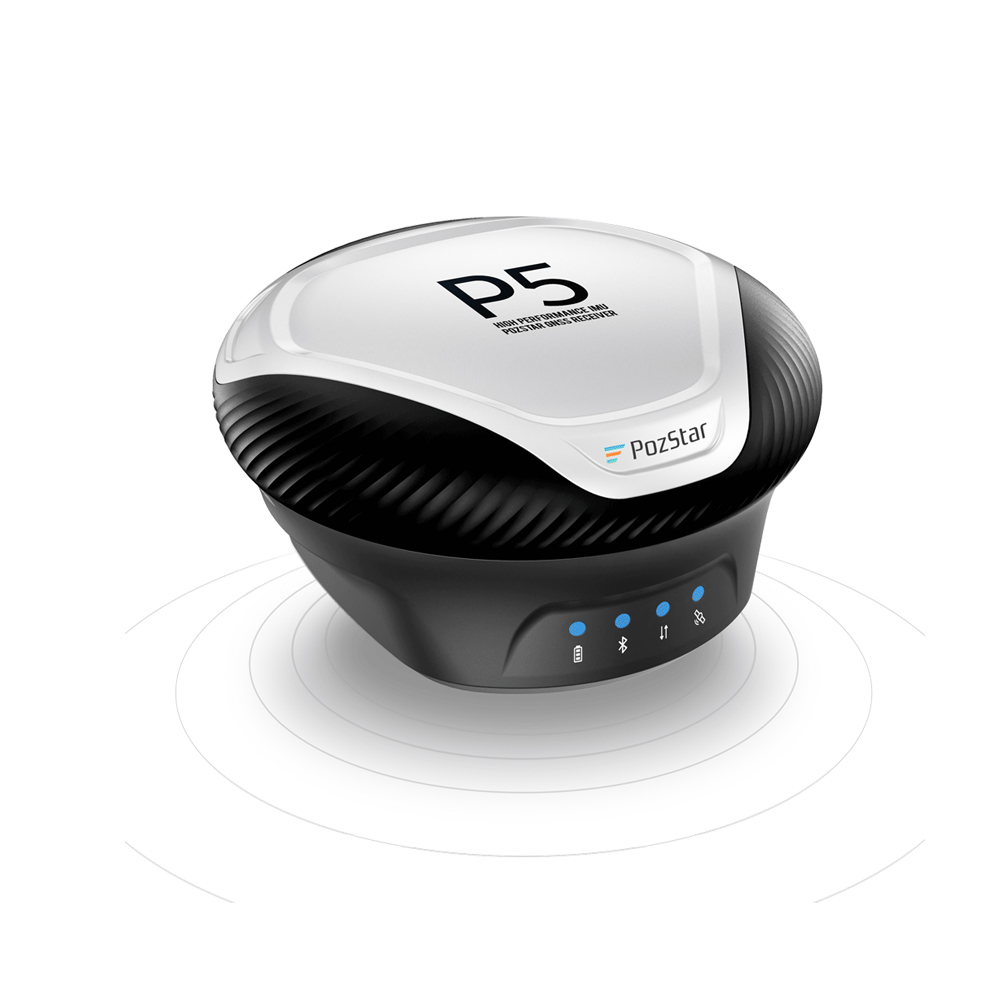

PozStar P5
Description
High-performance GPS topographic receiver with premium finishes and top-quality competence. Made in Korea. PozStar P5. Average price.
Video Presentation:
Specifications
PERFORMANCE
| Channels: | 1408 Channels |
| GPS: | L1 C/A, L1C, L2P(Y), L2C, L5 |
| BDS: | B1l, B2l, B3l, B1C, B2a, B2b |
| GLONASS: | G1, G2, G3 |
| GALILEO: | E1, E5a, E5b, E6 |
| QZSS: | L1, L2, L5 |
| SBAS: | WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS, WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS, WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS |
| NavIC: | L5 |
PRECISION
| Cold start: | < 12 seconds |
| Hot start: | < 4 seconds |
| RTK signal initialisation: | > 99,9% |
| Update frequency: | 20 Hz |
| Static and fast static: | -H: 3mm + 0.5 ppm (RMS) -V: 5mm + 0.5 ppm (RMS) |
| RTK: | -H: 0.8 cm + 1 ppm (RMS) -V: 1,5 cm + 1 ppm (RMS) |
| Standard point positioning: | -H: 1.5 m (RMS) -V: 2.5 m (RMS) |
| Differential: | -H: 0.4 mm (RMS) -V: 0,8 mm (RMS) |
| SBAS: | -H: 0,3 m (RMS) -V: 0,6 mm (RMS) |
| Correction data: | RTCM V3. X, RTCM2, CMR |
HARDWARE
| Size: | 135 x 135 x 88 mm |
| Weight: | 825gr |
| Speaker: | 1W (Multilingual support) |
| Ambient temperature range: | Operating: -40 °C to +65 °C Storage: -40 °C to +85 °C |
| Humidity: | 100% condensing |
| Protection against ingress of particles: | IP67 waterproof and dustproof, protected against temporary immersion to a depth of 1m |
| Impact: | Withstands falls from a height of 2 metres |
| Tilt sensor: | Calibration-free IMU, Immune to magnetic disturbances |

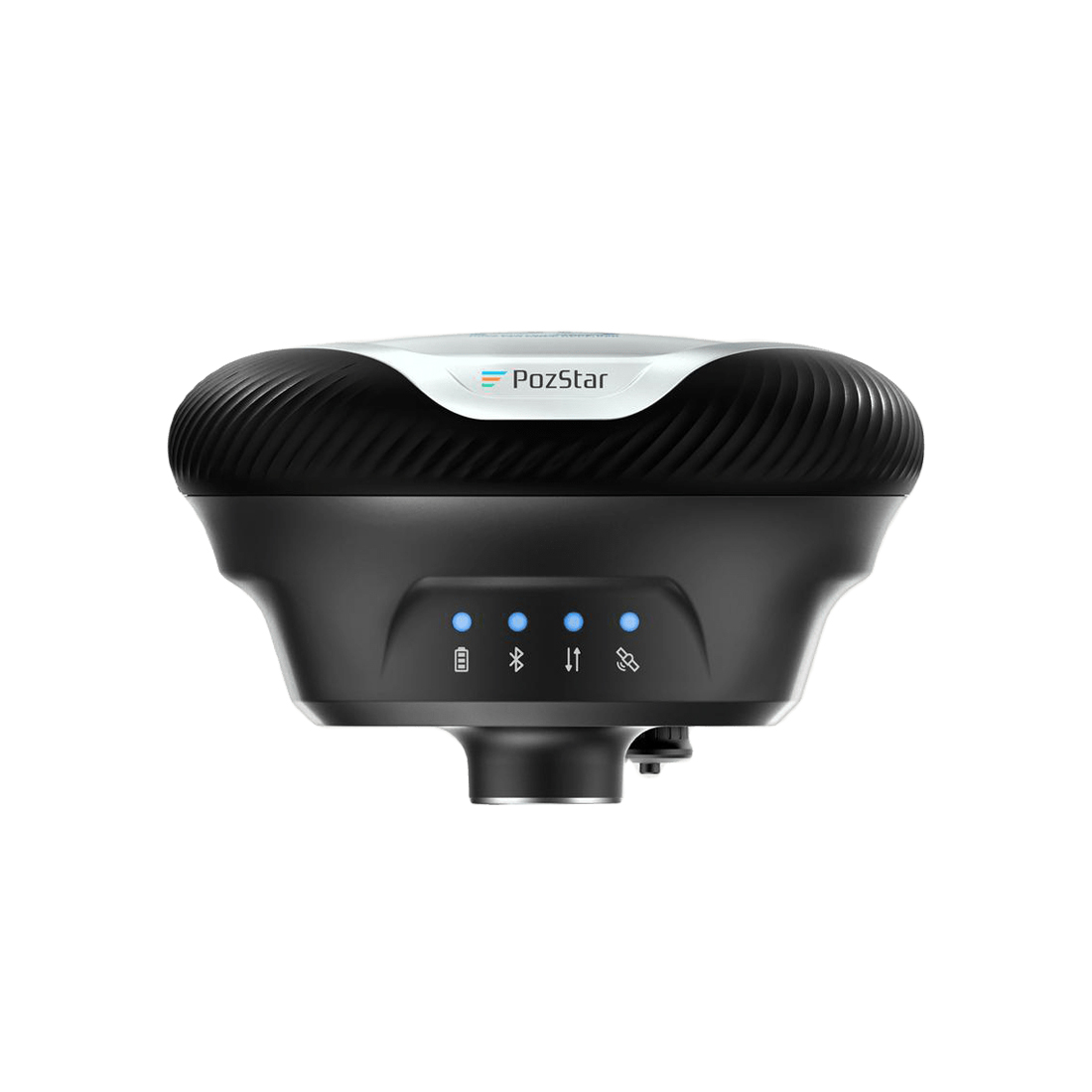

| Front panel: | 4 LEDs |
COMMUNICATION AND RECORDING OF DATA
| Wi-Fi: | 802.11 b/g/n, access point mode |
| Bluetooth: | LE V4.1 |
| Ports: | 1 USB Type-C port (data download, charging firmware update) 1 UHF antenna port (TNC female) 1 x 5-pin port |
| UHF radio (optional): | Standard internal Rx: 410-470 MHz Protocol: TRIMTALK, TRIMMK3, TT450, TRANSEOT, SATEL Link speed: 4800 bps ~ 19200 bps Range: 15 Km in open areas - 5 Km in urban environment |
| Data formats: | Entry and exit CMR RTCM 2.x, input and output RTCM 3.x NMEA 0183 output Formats static RINEX NTRIP Client (in PDA network) |
| Data storage: | SAMSUNG 8 GB high-speed memory |
| 5-pin port: | Possibility to connect to an external radio and an external power supply, output NMEA Link speed: 1200 bps ~ 460800 bps |
ELECTRICAL DATA
| Energy consumption: | 2.2 W (depending on user configuration) |
| Lithium-ion battery capacity: | Built-in, non-removable SAMSUNG 6700 mAh battery |
| Operating time on: | RTK Rover: 12 h Static: up to 18 h |
| External power supply: | 5V / 3A |
